雙功能鑰匙開關
|
12mm Keylock Switches/PBM-12K Series
SPECIFICATIONS
Contact Rating: 1A 125VAC，0.5A 250VAC Electrical Life: 50,000 cycles
Contact Resistance: 10Milli-Ohms Max.
Dielectric Strength: 500 Vrms @sea level. |
|
.jpg)
Description

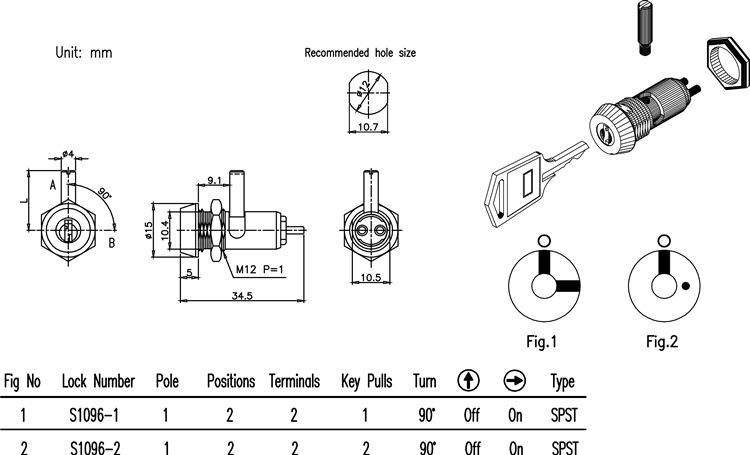

No. S1096
. Zinc alloy die cast housing and cylinder.
. Stainless steel capped bezel.
. Chrome plated standard.
. 4 disc tumbler mechanism.
. Brass keys, nickel plated.
. “L” dimension 13mm standard; other dimensions available upon request.
. Dual-functioned Key Lock Switch.
. Silver plated contacts and terminals.
. 2 position (off-on) 2 terminals.
. Hex nut or speed clip mounted.
Description

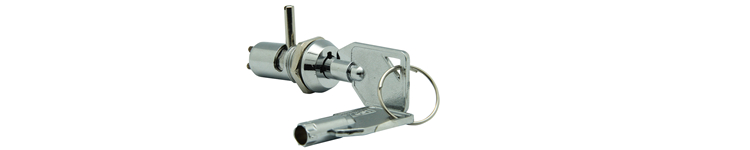

No. S1097
. Zinc alloy die cast housing and cylinder.
. Bright chrome plated standard.
. No pin tumbler mechanism.
. Zinc alloy tubular keys, chrome plated.
. “L” dimension 13mm standard; other dimensions available upon request.
. Dual-functioned Key Lock Switch.
. Silver plated contacts and terminals.
. 2 position (off-on) 2 terminals.
. Hex nut or speed clip mounted.
Description

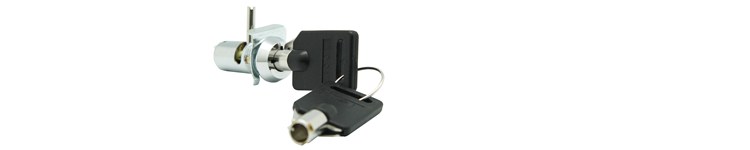

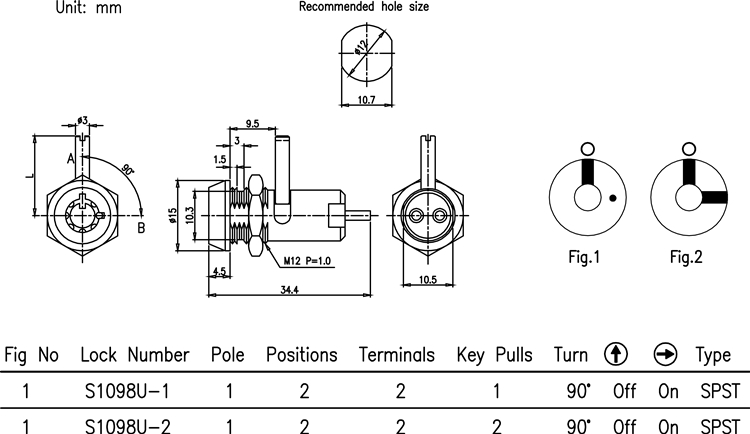

No. S1098
. Zinc alloy die cast housing and cylinder.
. Bright chrome plated standard.
. 4 pin tumbler mechanism.
. Steel made tubular keys, nickel plated, with plastic cover.
. “L” dimension 13mm standard; other dimensions available upon request.
. Dual-functioned Key Lock Switch.
. Silver plated contacts and terminals.
. 2 position (off-on) 2 terminals.
. Hex nut or speed clip mounted
Description

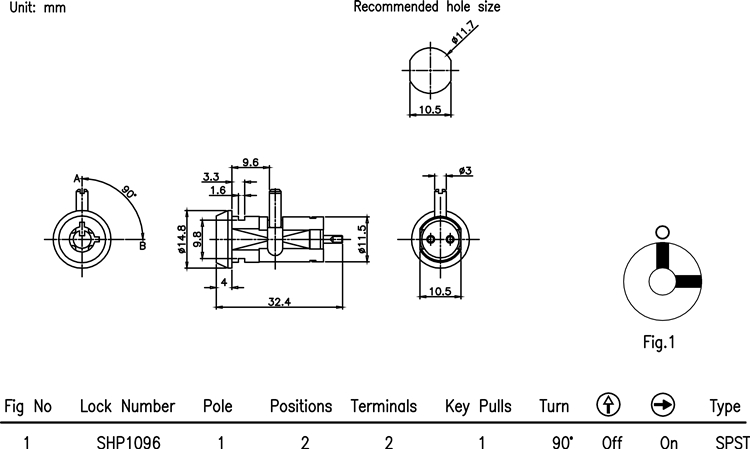

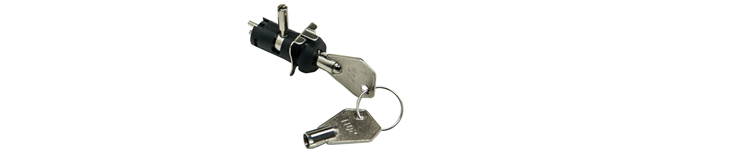

No. SHP1096
. ABS housing and cylinder.
. 4 disc tumbler mechanism.
. Brass keys, nickel plated.
. “L” dimension 13mm standard; other dimensions available upon request.
. Dual-functioned Key Lock Switch.
. Silver plated contacts and terminals.
. 2 position (off-on) 2 terminals.
. Hex nut or speed clip mounted.
